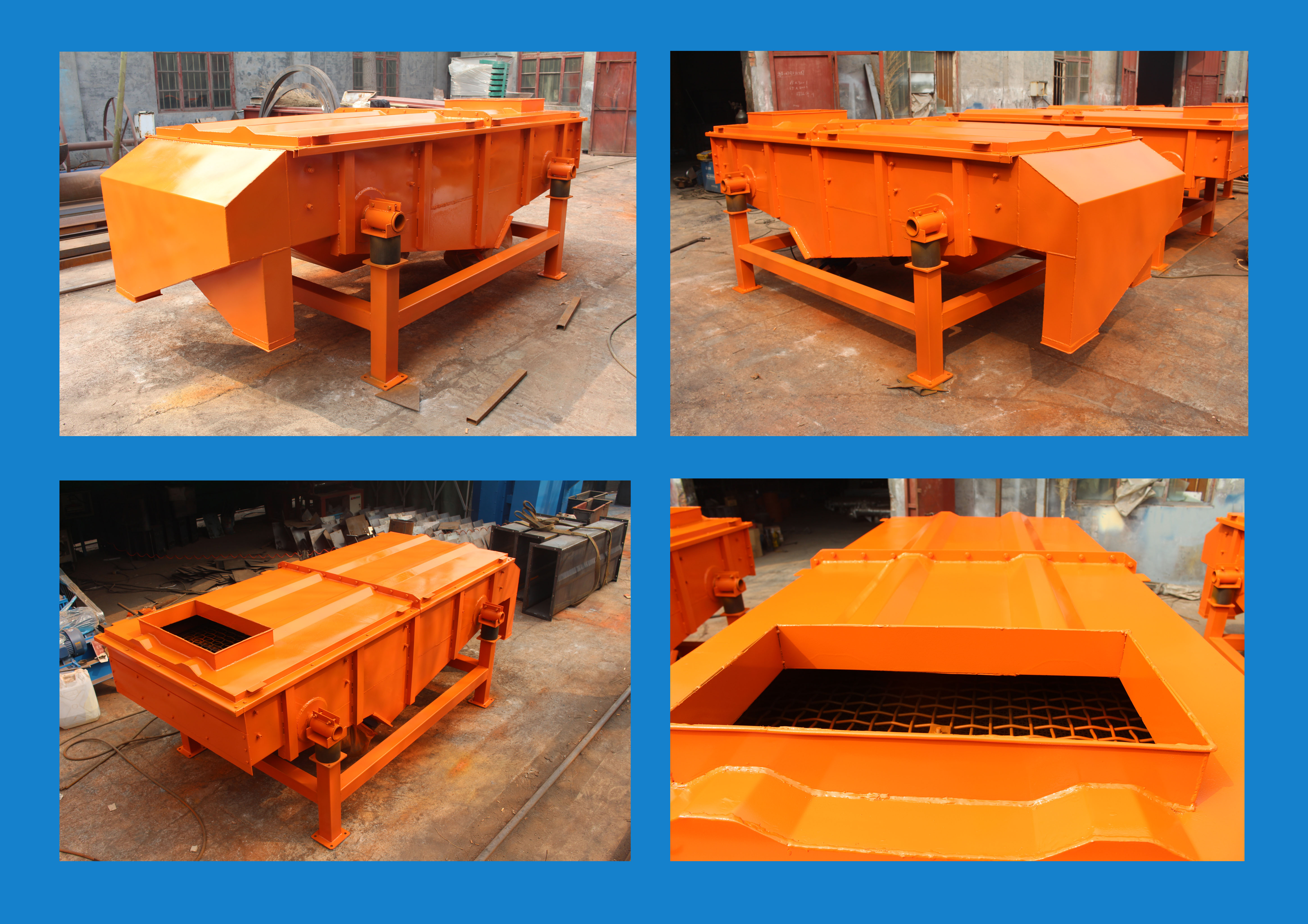

High Efficiency And Durable Sand Vibration Screen And Coal Vibrating Screen
Introduction
High Efficiency And Durable Sand Vibration Screen And Coal Vibrating Screen is a high precision fine powder screening machine.The fundamental principle of vibrating screen sifter is that the unbalanced weight dropper installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities.
High Efficiency And Durable Sand Vibration Screen And Coal Vibrating Screen use vibration motor as vibration source, the materials are rose and moved in the straight at the same time. The material are entered into entrance equality, and then go through screen to create the materials with different sizes, which was discharged, from different outlet.
Specification
| Model | Size of screen surface | Number of layers of screen | Mesh size | Capacity | Number of vibration | Double amplitude | Motor power |
| DZSF520 | 500*2000 | 1-6 | 2-200 mesh | 0.03-5 | 960-1450 | 4-8 | 2×0.4 |
| DZSF525 | 500×2500 | 1-6 | 0.06-15 | 960-1450 | 2×0.4/0.75 |
| DZSF1020 | 1000×2000 | 1-6 | 0.07-20 | 960 | 2×0.75/1.5 |
| DZSF1025 | 1000×2500 | 1-6 | 0.07-15 | 960-1450 | 2×0.4/0.75 |
| DZSF830 | 800×3000 | 1-6 | 0.07-15 | 960 | 2×0.75 |
| DZSF1030 | 1000×3000 | 1-6 | 0.1-20 | 960 | 2×0.75/1.5 |
| DZSF1224 | 1200×2400 | 1-6 | 0.1-23 | 960 | 2×0.4/0.75 |
Application
High Efficiency And Durable Sand Vibration Screen And Coal Vibrating Screen can be applied to the screening and grading of powder and granular materials. It is widely used in plastics, rubber, ceramic, food, pharmaceutical, chemical, carbon, fertilizer, glass industries and so on.
Feature-High Efficiency And Durable Sand Vibration Screen And Coal Vibrating Screen
- Low consumption with high yield and low cost.
- Fully enclosed structure, automatic layout, more suitable for pipeline operations.
- Good sealing without dust flying.
- Can be used for single or multi layer.
- Material auto discharge, be able to continuous operation.
- Every part of the screen box used copper plate and section welded together.
